70 TOPS Industrial Embedded Pc NVIDIA Jetson Orin NX 8G 5G WIFI6 IP66 For UAV

Product Categories
Beijing Plink AI Technology Co., Ltd
Contact Now

70 TOPS Industrial Embedded Pc NVIDIA Jetson Orin NX 8G 5G WIFI6 IP66 For UAV

  • 1
  • 2

Brand Name : PLink

Model Number : ONX8-17F1

Place of Origin : China

MOQ : 1PCS

Price : To be discussed

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 20pcs 15-30 work days

Delivery Time : 15-30 work days

NAME : NVIDIA Jetson Orin NX 8G Embedded Computer with 5G and Optional WIFI6 for UAV IP66

Keyword : NVIDIA Jetson Orin NX 8G Embedded Computer with 5G and Optional WIFI6 for UAV IP66

AI Performance : 70 TOPS

PN : 900-13767-0010-000

Memory : 8GB 128-bit LPDDR5 102.4GB/s

Storage : 128GB NVMe

Mechanical : 100mm*74mm*47mm

Weight : 235g

DL Accelerator : 1x NVDLA v2

OSDK : USB 2.0,UART,PPS,PWM

Temperature : -25~+65℃

Internet : 5G

Contact Now

NVIDIA Jetson Orin NX 8G Embedded Computer with 5G and Optional WIFI6 for UAV IP66

NVIDIA Jetson Orin NX Module 8G 900-13767-0010-000 Embedded Computer(17F1)

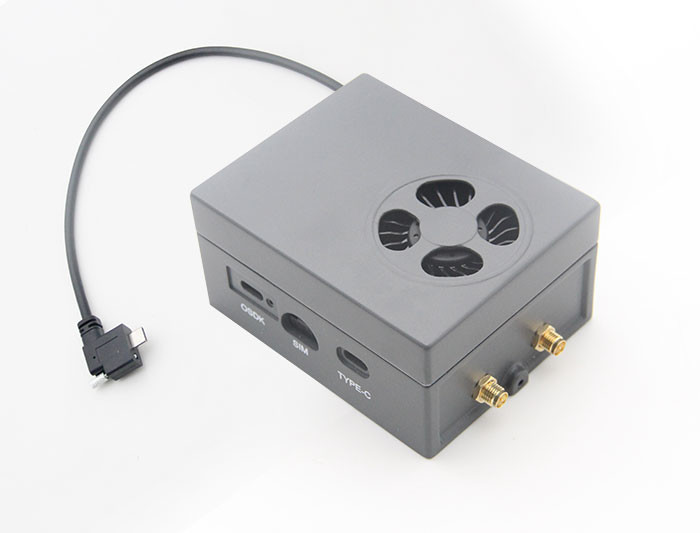

17F1 is a compact and lightweight embedded industrial computer, designed for DJI UAV M300, M30 and M500 and other models of artificial intelligence computing platform, the industrial computer is equipped with automatic dialing type 5G module, easy to operate, no need to drive and manual dialing, external interface waterproof design, greatly improve the waterproof performance. You can also choose to add Wi-Fi 6 module, which provides a Type-C interface for convenient system debugging. Users can connect to Type-C HUB or other modules according to requirements

Technical Specifications

ModuleNVIDIA Jetson Orin NX 8G
PN900-13767-0010-000

AI Performance

70 TOPS
GPU

1024-core NVIDIA Ampere GPU with 32 Tensor Cores

CPU

6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3

Memory

8GB 128-bit LPDDR5

102.4GB/s

Storage

128GB NVMe

Size

98mm*76mm*42mm

Weight235g
Power

DC 12-24V

Interface
1 X USB Type-C
USB
OSDK/PSDK
OSDK

USB2.0,UART,PPS,PWM

Temperature-25~+65℃
PSDK

USB2.0,UART


About the Part

Order TypeFunctionManufacturerStandard/Optional
17F1-DJ-CableOSDK cable for connecting 17F1 to DJI UAVPLink-AIStandard
OSDK-Helper-V1-1OSDK signal separation boardPLink-AIStandard
1000441875295-in-1 Type-C docking stationBiazeStandard
SDK

coaxial cable

17F1 connects OSDK cables to DJI UAVDJIOptional
M300- Bracket


17F1 and DJI M300 UAV mounting rack
(Including 2 M2.5*6 combination screws, 4 M2.5*8 combination screws)

PLink-AIOptional
M30
Quick-release rack		17F1 and DJI M30 drone mounting rackDJIOptional
