Smart City Ascend Atlas 300I Duo Inference Card 256 Channel Real Time HD 280 TOPS 48GB

Product Categories
Beijing Plink AI Technology Co., Ltd
Contact Now

Smart City Ascend Atlas 300I Duo Inference Card 256 Channel Real Time HD 280 TOPS 48GB

  • 1
  • 2

Brand Name : Hua Wei

Model Number : Atlas 300V Video Analysis Card

Place of Origin : China

MOQ : 1set

Price : To be negotiated

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : Batch purchase price negotiation

Delivery Time : 15-30 work days

NAME : Smart City Ascend Atlas 300I Duo Inference Card 256-channel real-time HD 280 TOPS 48GB Memory video applications

Keyword : Smart City Ascend Atlas 300I Duo Inference Card 256-channel real-time HD 280 TOPS 48GB Memory video applications

Integer precision (INT8) : 280 TOPS

Memory : 48 GB LPDDR4X with a total bandwidth of 408 GB/s

Power Consumption : 150W

Dimensions : 111.15 mm x 18.46 mm x 266.7 mm

Weight : 910 g

OS : For details

Contact Now

Smart City Ascend Atlas 300I Duo Inference Card 256-channel real-time HD 280 TOPS 48GB Memory video applications

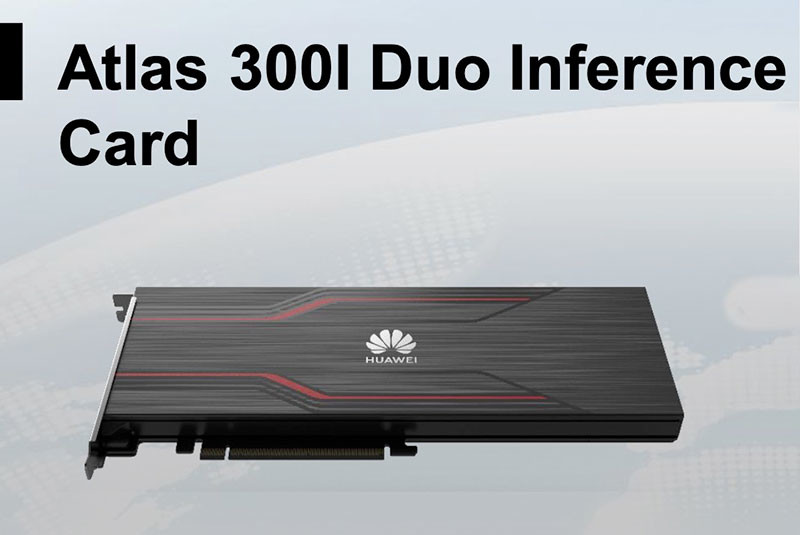

Ascend Hua Wei Atlas 300I Duo Inference Card

In the Smart City 2.0 city governance scenario, algorithms such as image classification, object detection, and image comparison are used to identify illegal roadside stalls, monitor food safety, and implement water governance, meeting the requirements of government departments for intelligent city governance and providing important support for service decision-making.the architecture of the Smart City 2.0 system. The system consists of front-end HD webcams or snapshot cameras, video analysis/inference clusters, resource scheduling servers, streaming media servers, platform application servers, and resource scheduling servers. The Hua Wei Ascend Atlas 300I Duo inference card is deployed in the video analysis/inference cluster to implement inference functions such as video decoding/preprocessing and identification of illegal roadside stalls, kitchen staff not wearing masks, and floating substances and illegal fishing in rivers.

Performance of Hua Wei Atlas 300I Duo Inference Card
Supreme computing power
– Up to 280 TOPS INT8 computing power per card, better support for central inference
– 16-core x 1.9 GHz CPU computing power
Ultra-high energy efficiency
Industry-leading energy efficiency ratio of 1.86 TOPS/W
High-performance video analysis
– Real-time analysis of 128-channel HD videos
– JPEG and video hardware encoding/decoding, boosting image and video applications.

Specifications of the Hua Wei Ascend Atlas 300I Duo Inference Card

AI processor

2 x Ascend 310P AI Processors, including:
16 Da Vinci AI Cores
16 Huawei-developed CPU cores

Form factor

FHFL single-slot (10.5 inches)

Half-precision (FP16)

140 TFLOPS

Integer precision (INT8)280 TOPS
Memory

48 GB LPDDR4X with a total bandwidth of 408 GB/s

Error checking and correcting (ECC)

Encoding/ Decoding capability

H.264 hardware decoding, 256-channel 1080p 30 FPS (32-channel 3840 x 2160 60 FPS)
H.265 hardware decoding, 256-channel 1080p 30 FPS (32-channel 3840 x 2160 60 FPS)
H.264 hardware encoding, 48-channel 1080p 30 FPS (6-channel 4K 60 FPS)
H.265 hardware encoding, 48-channel 1080p 30 FPS (6-channel 4K 60 FPS)
JPEG decoding: 4K 768 FPS; encoding: 4K 384 FPS; Max. resolution: 8192 x 8192

Virtual instance specifications

One Ascend AI Processor can be divided into several virtual NPUs in virtualization mode. Each virtual NPU supports 1, 2, or 4 AI Cores, and other hardware resources (such as memory and codec module) are divided proportionally.

Power consumption

150 W

Dimensions (W x H x D)

266.7 mm × 18.46 mm × 111.15 mm

Weight (g)

910g

PCIe port

x16 lanes, compatible with x8/x4/x2 PCIe Gen4.0, compatible with 3.0/2.0/1.0

Operating Temperature

0°C to 55°C (32°F to 131°F)

Smart City Ascend Atlas 300I Duo Inference Card 256 Channel Real Time HD 280 TOPS 48GB
