945-13766-0000-000 Jetson Nano Orin 8gb Module NVIDIA Ampere GPU

  • 1
  • 2

Brand Name : NVIDIA

Model Number : Jetson Orin Nano developer kit

Place of Origin : USA

MOQ : 1PCS

Price : To be discussed

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 20pcs 15-30 work days

Delivery Time : 15-30 work days

NAME : Nvidia Jetson Orin Nano Developer Kit 945-13766-0000-000 Orin Nano Module NVIDIA Ampere GPU

Keyword : Nvidia Jetson Orin Nano Developer Kit 945-13766-0000-000 Orin Nano Module NVIDIA Ampere GPU

PN Number : 945-13766-0000-000

AI Perf : 40 TOPS

DL Accelerator : -

Networking : 1xGbE Connector

Memory : 8GB 128-bit LPDDR5 68 GB/s

Storage : SD Card Slot & external NVMe via M.2 Key M

Display : 1x DisplayPort 1.2 (+MST) connector

Mechanical : 100 mm x 79 mmx 21 mm (Height includes feet, carrier board, module, and thermal solution)

Contact Now

Nvidia Jetson Orin Nano Developer Kit 945-13766-0000-000 Orin Nano Module NVIDIA Ampere GPU

NVIDIA Jeton Orin Nano Developer Kit Specification 945-13766-0000-000

The NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 sets a new standard for creating entry-level AI-powered robots, smart drones, and intelligent cameras, while simplifying the process of starting with the Jetson Orin Nano series. and the NVIDIA Jetson Orin Nano series modules deliver up to 40 TOPS of AI performance,The Jetson Orin Nano developer kit carrier board 945-13766-0000-000 implements an RJ45 connector along with the necessary magnetics device. and includes a M.2, Key E Slot Mini-PCIe Expansion slot . This includes interface options for WiFi/BT including PCIe (x1), USB 2.0, UART, I2S, and I2C optional.(Notes:The Jetson Orin Nano Developer Kit carrier board will only support single sided M.2 Key E modules.Stuffing resistors for connecting I2C2 to pins 58 and 60 of the M.2 Key E connector are not installed by default. If I2C is required, 0Ω resistors can be installed at locations R106 and R107. Care should be taken as some M.2 cards can cause conflicts with other devices connected to the I2C interface.

Jetson Orin Nano Developer Kit 945-13766-0000-000

AI Perf

 40 TOPS
GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3
Memory 8GB 128-bit LPDDR5
68 GB/s
Storage -
(SD Card Slot & external NVMe via M.2 Key M)
Video Encode 1080p30 supported by 1-2 CPU cores
Video Decode 1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
CSI Camera 2x MIPI CSI-2 22-pin Camera Connectors
PCIe M.2 Key M slot with x4 PCIe Gen3
M.2 Key M slot with x2 PCIe Gen3
M.2 Key E slot
USB USB Type-A Connector: 4x USB 3.2 Gen2
USB Type-C Connector for UFP
Networking 1xGbE Connector
Display 1x DisplayPort 1.2 (+MST) connector
Mechanical 100 mm x 79 mmx 21 mm
(Height includes feet, carrier board, module, and thermal solution)
945-13766-0000-000 Jetson Nano Orin 8gb Module NVIDIA Ampere GPU

J2 Jetson Orin Nano Conn. (SODIMM, 260-pin)

J5 USB Type C

J6 USB Type A Dual Stacked Connector

J7 USB Type A Dual Stacked Connector

J8 DisplayPort Connector

J12 40-pin Expansion Header (2x20, 2.54 mm pitch)

J13 Fan Header (4-pin, 1.25 mm pitch)

J14 Button Header (1x12, 2.54 mm pitch, RA)

J15 RJ45 Ethernet Socket, 18-pins, RA, Female

J16 Power Jack

J17 Optional: CAN Bus Header (1x4, 2.54 mm pitch, RA)

J18 Optional: PoE Backpower Header (1x2, 2.54 mm pitch)

J19 Optional: PoE Header (1x4, 2.54 mm pitch)

J20 Camera (#0) Connector (22 pos, 0.5 mm pitch)

J21 Camera (#1) Connector (22 pos, 0.5 mm pitch)

DS1 Power LED (Green)

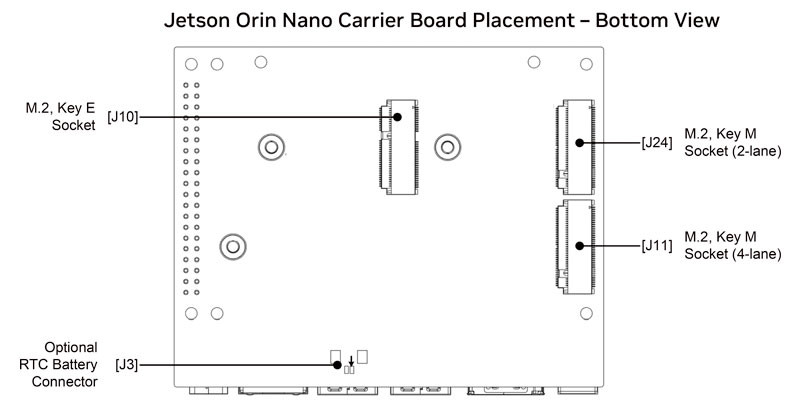

945-13766-0000-000 Jetson Nano Orin 8gb Module NVIDIA Ampere GPU

J3 Optional: RTC Back-up Coin Cell Socket (CR1225)

J10 M.2 Key E Connectivity Slot (75-pin)

J11 M.2 Key M Slot (75-pin)

J24 M.2 Key M Slot (75-pin)
